SKF 232/560 CAK/W33 Bearing Description

We supply various of SKF 232/560 CAK/W33 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 232/560 CAK/W33 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 232/560 CAK/W33 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 232/560 CAK/W33 bearings inquire deeply into the running of the machine and friction phenomenon .SKF 232/560 CAK/W33 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 232/560 CAK/W33 bearings will be arranged timely for we have a large stock of SKF 232/560 CAK/W33 bearings in HongKong.

SKF 232/560 CAK/W33 Bearing Specification

Bearing number : 232/560 CAK/W33

Size (mm) : 560x1030x365

Brand : The brand you need

Bore Diameter (mm) : 560

Outer Diameter (mm) : 1030

Width (mm) : 365

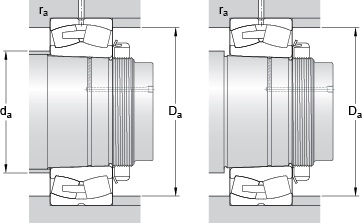

Bearing dimensions and specification in ALIER catalogue:

d – 560 mm

D – 1030 mm

B – 365 mm

d₂ – – 706 mm

D₁ – – 878 mm

b – 22.3 mm

K – 12 mm

r_1,2 – min. – 9.5 mm

d_a – min. – 586 mm

d_a – max. – 706 mm

D_a – max. – 990 mm

r_a – max. – 8 mm

Basic dynamic load rating – C – 13940 kN

Basic static load rating – C₀ – 22000 kN

Fatigue load limit – P_u – 1320 kN

Reference speed – 280 r/min

Limiting speed – 430 r/min

Calculation factor – e – 0.35

Calculation factor – Y₁ – 1.9

Calculation factor – Y₂ – 2.9

Calculation factor – Y₀ – 1.8

Weight – 1310 kg
