SKF 63002-2RS1 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 63002-2RS1 Transparent And Fair Price On Time Delivery

SKF 63002-2RS1 Bearing Description

We supply various of SKF 63002-2RS1 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 63002-2RS1 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 63002-2RS1 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 63002-2RS1 bearings inquire deeply into the running of the machine and friction phenomenon .SKF 63002-2RS1 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 63002-2RS1 bearings will be arranged timely for we have a large stock of SKF 63002-2RS1 bearings in HongKong.

SKF 63002-2RS1 Bearing Specification

Bearing number : 63002-2RS1

Size (mm) : 15x32x13

Brand : The brand you need

Bore Diameter (mm) : 15

Outer Diameter (mm) : 32

Width (mm) : 13

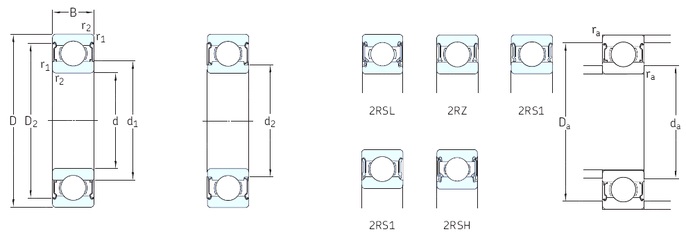

Bearing dimensions and specification in ALIER catalogue:

d – 15 mm

D – 32 mm

B – 13 mm

C – 13 mm

d1 – 20,5 mm

d2 – ?C mm

r1 min. – 17 mm

r2 min. – 17 mm

D1 – 28,2 mm

D2 – 0,3 mm

da min. – 20,4 mm

Da max. – 30 mm

ra max. – 0,3 mm

Weight – 0,039 Kg

Basic dynamic load rating (C) – 5,59 kN

Basic static load rating (C0) – 2,85 kN

Fatigue load limit (Pu) – 0,12

Reference speed – ?C r/min

Limiting speed – 14000 r/min

Calculation factor (f0) – 14

Calculation factor (kr) – 0,025
