SKF SALKB22F Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SALKB22F Transparent And Fair Price On Time Delivery

SKF SALKB22F Bearing Description

We supply various of SKF SALKB22F bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SALKB22F bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SALKB22F bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SALKB22F bearings inquire deeply into the running of the machine and friction phenomenon .SKF SALKB22F bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SALKB22F bearings will be arranged timely for we have a large stock of SKF SALKB22F bearings in HongKong.

SKF SALKB22F Bearing Specification

Bearing number : SALKB22F

Brand : The brand you need

Bore Diameter (mm) : 22

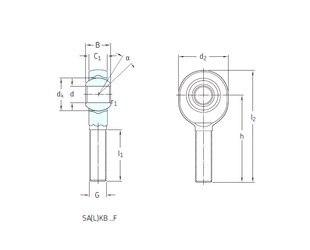

Bearing dimensions and specification in ALIER catalogue:

d – 22 mm

d2 max. – 55 mm

dk – 38,1 mm

h – 84 mm

l1 min. – 48 mm

l2 max. – 114 mm

r1 min. – 0,3 mm

B – 28 mm

C1 max – 20 mm

Thread (G) – M22x1,5 Tolerance 6g

Angle – 15 °

Weight – 0,46 Kg

Basic dynamic load rating (C) – 38 kN

Basic static load rating (C0) – 58,5 kN
